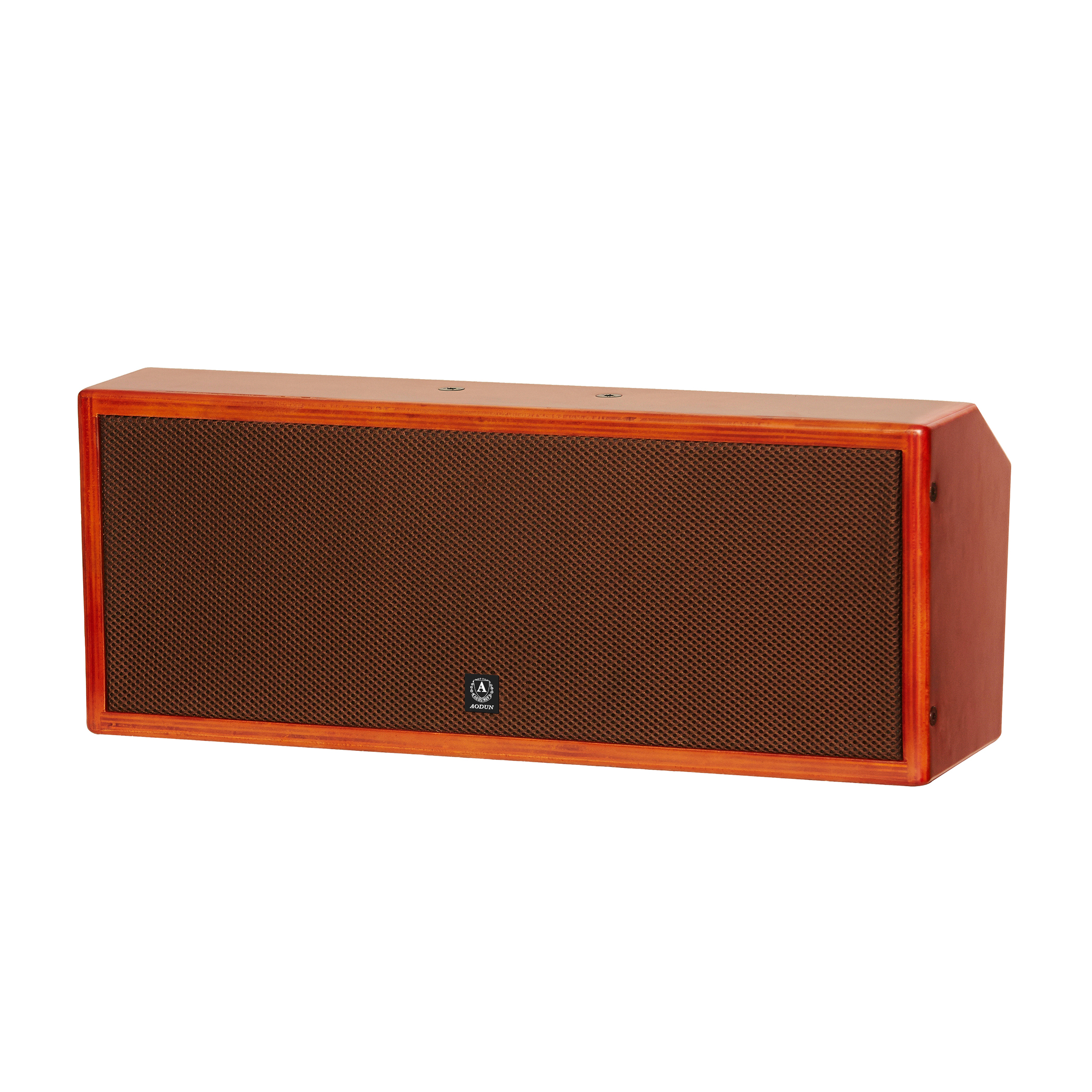

The box is made of multi-layer solid wood birch plywood, which has high strength and light weight. When producing sound, the box vibrates less, effectively reducing more harmful standing waves and clutter. The audio-visual reproduction is more realistic, and the sound quality is better. As a custom-made central speaker unit in cinemas, it should have a certain level of sound pressure and dynamic performance energy, with accurate, powerful, and clean sound that brings rich sensory expression.

parameter

Unit composition: Bass 2x8 "(140 magnetic 50 core), treble 1x1.36"（ Φ 36mm)
Frequency response: 80Hz-20KHz
Power (Rms/Peak): 300W
Sensitivity 1W/1M: 95dB
Maximum sound pressure SPL: 121dB
Impedance: 8 ohms
Coverage angle (H x V) 120 ° x 60 °
Frequency division point: 2.5KHz
Product size (W * D * H): 645 * 228 * 281 MM Net weight: 16.5 kg
